Set up POS Payment Bins

Each POS unit can have multiple payment bins and different setup. You can set cash drawers and virtual drawers.

Create cash drawers/banks/safes #

To create cash drawers, banks, or safes, follow the provided steps:

1. Click the button, enter POS Payment Bins and open the related link.
2. Create New.
3. Add a number of cash drawers in the No. field.
4. Add Description (e.g. Cash Drawer)
5. Choose the POS store and POS unit that will have the cash drawer in the POS Store and POS unit fields.
6. Select Cash Drawer in the Bin Type dropdown.

7. In the Eject Method field set TEMPLATE as the method in which the cash drawer will be ejected.
   After selecting the template eject method, the Eject Method Parameters need to be set.
8. Click Eject Method Parameters.
   Name, Description, and Data Type are automatically populated.
9. Set the value to EPSON_CASH_DRAWER.

Create virtual bins #

To create virtual bins, follow the provided steps:

1. Click the button, enter POS Payment Bins and open the related link.
2. Create New.
3. In the No. field add Auto_Bin.
4. Add Description (e.g. Virtual Bin).
5. Choose the POS store and POS unit that will have the cash drawer in the POS Store and POS unit fields.
6. Select Virtual in the Bin Type dropdown.

Next steps #

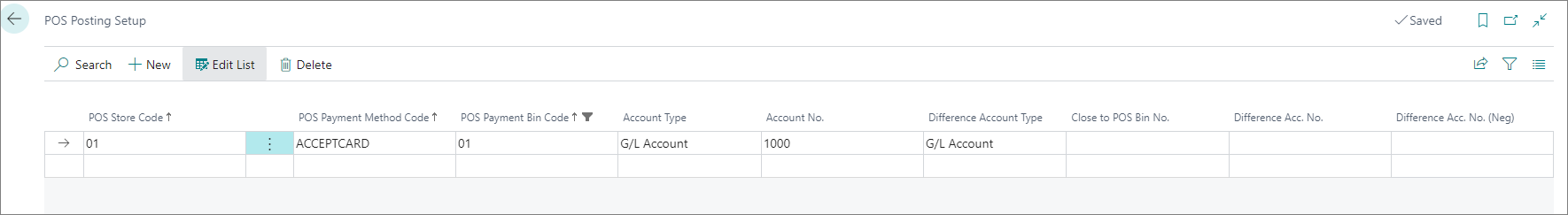

POS Posting setup #

Each cash drawer or virtual drawer can be posted on a different G/L account.

1. Open the POS Posting Setup
2. Select the POS Store Code.
3. Select the POS Payment Method Code.
4. Add an Account.
